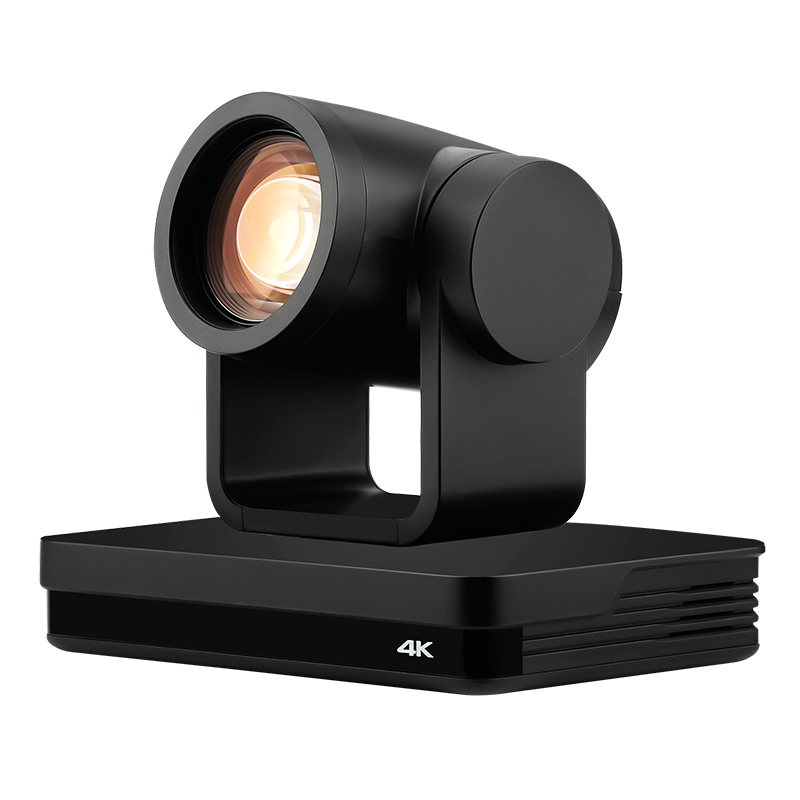

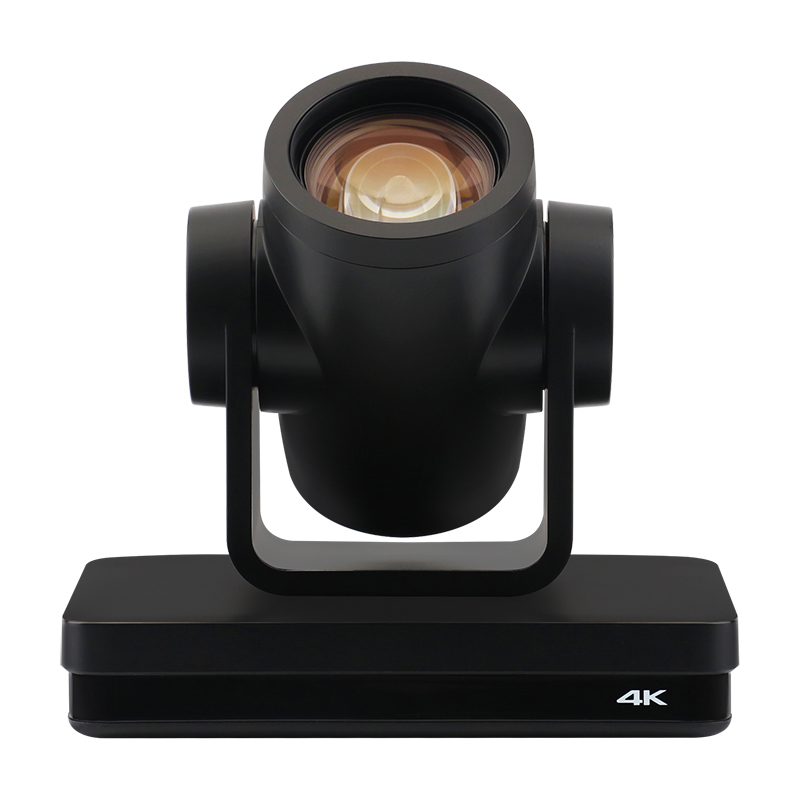

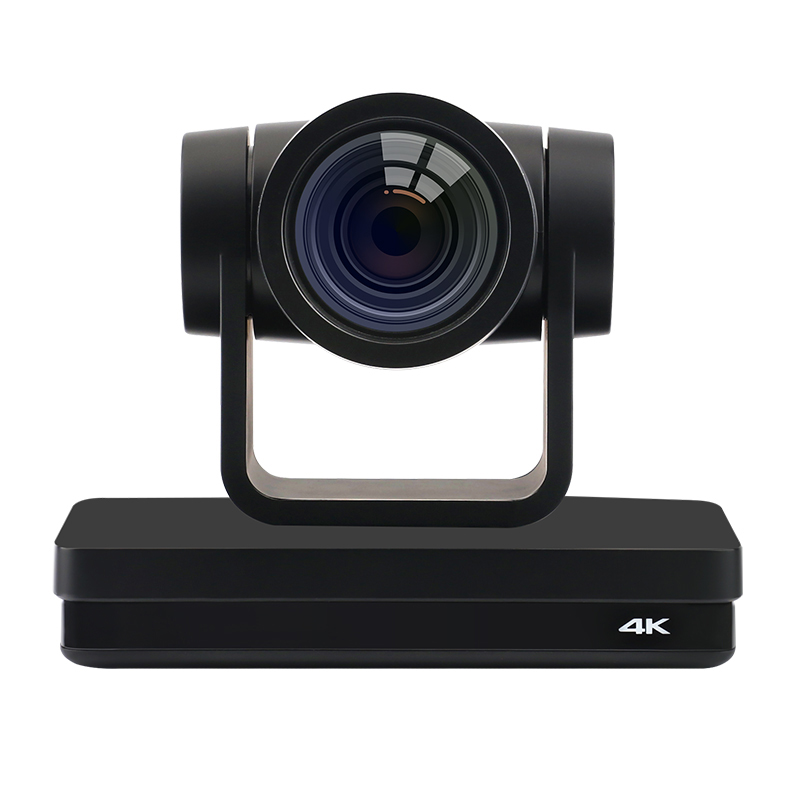

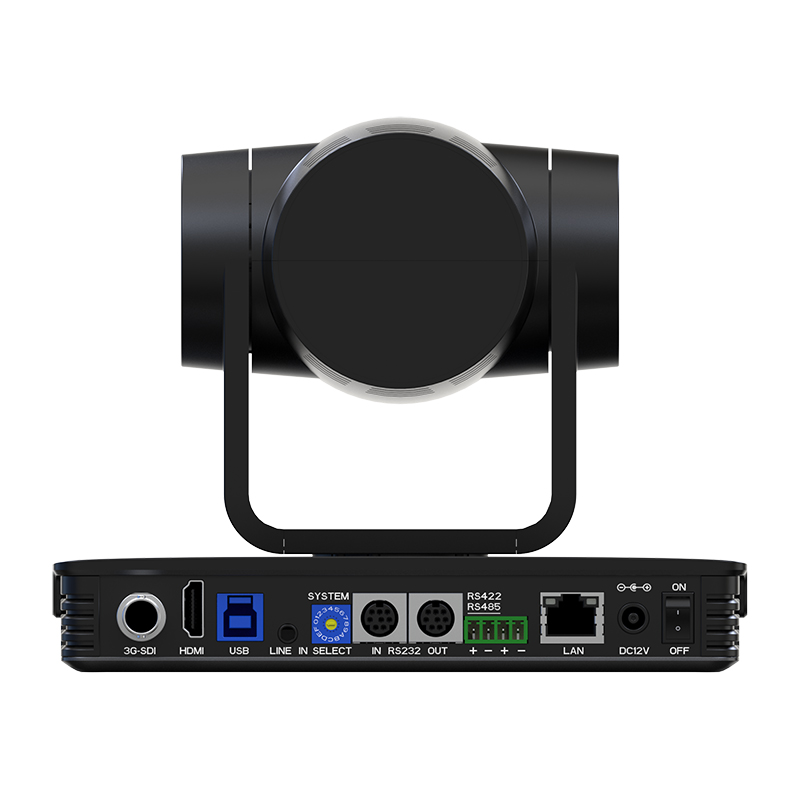

live streaming camera

Type: video conference camera, PTZ camera, education camera, medical training camera Model: TC420 Params: Image Sensor 1/2.8 inch high quality HD CMOS sensor Effective Pixel 8.29M 16:9 Video Signal HDMI： 4KP30、4KP25、1080P60、1080P50、1080P30、1080P25、720P60、720P50、1080P59.94、1080P29.97、720P59.94 SDI 1080P60、1080P50、1080P30、1080P25、720P60、720P50、1080P59.94、1080P29.97、720P59.94 USB3.0 Main Stream：YUY2/NV12: 1920×1080@10/5fps;1280×720@25/20/15/10/5fps; 1024×576/800×600/800×448/640×360/480×270/320×180@30/25/20/15/10/5fps; MJPG/H264: 3840*2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps; Sub Stream：YUY2/NV12: 1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps; Optical Zoom 12X Viewing Angle H：6.5°（N）～70.9°（W） Focal Length 3.9～46.8 mm ±5% Iris F1.6 ～ F2.8±5% Digital Zoom 15X Minimum Illumination 0.5Lux(F1.8, AGC ON) DNR 2D﹠3D White Balance Auto/Manual/One-push/Specified Color Temperature Focus Auto/Manual/One-push Exposure Mode Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority Iris Mode F1.8 ～ F11, CLOSE Shutter Speed 1/25～1/20000 BLC On/off Dynamic Range Off, 1 ～ 8 Video Adjustment Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve SNR >50dB Interface Parameter Interfaces HDMI, SDI, LAN(POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422(Compatible with RS485), DC12V Power Supply, Dial Switch, Power Switch Video Output HDMI, SDI, LAN, USB3.0 Video Compression Format LAN：H.264, H.265 USB 3.0：MJPG, H264, YUY2, NV12 Audio Input Interface Double track 3.5mm linear input; Audio Output Interface HDMI, SDI, LAN, USB3.0 Audio Compression Format AAC, MP3, G.711A LAN Interface 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output. Network Protocol RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset Control Interface RS232-IN, RS232-OUT, RS422 compatible with RS485 Serial Port Communication Protocols VISCA/Pelco-D/Pelco-P； Support Baudrate: 115200/38400/9600/4800/2400 USB Communication Protocol UVC（Video Communication Protocol）, UAC（Audio Communication Protocol） Power Supply HEC3800 Power Socket(DC12V) Power Adapter Input: AC110V~AC220V ；Output: DC12V/2.5A Input Voltage DC12V±10% Input <1A Consumption <12W PTZ Parameter Pan Move -170°～+170° Tilt Move -30°～+90° ° Pan Speed 0.1°/s～60°/s Tilt Speed 0.1°/s～45°/s Preset Speed Pan：60°/s, Tilt：45°/s Preset Quantity Up to 255 preset (10 via remote control) Material: plastic, glass Applicable Industry: medical training, education teaching, event live streaming, broadcasting camera C camera A camera B camera D
